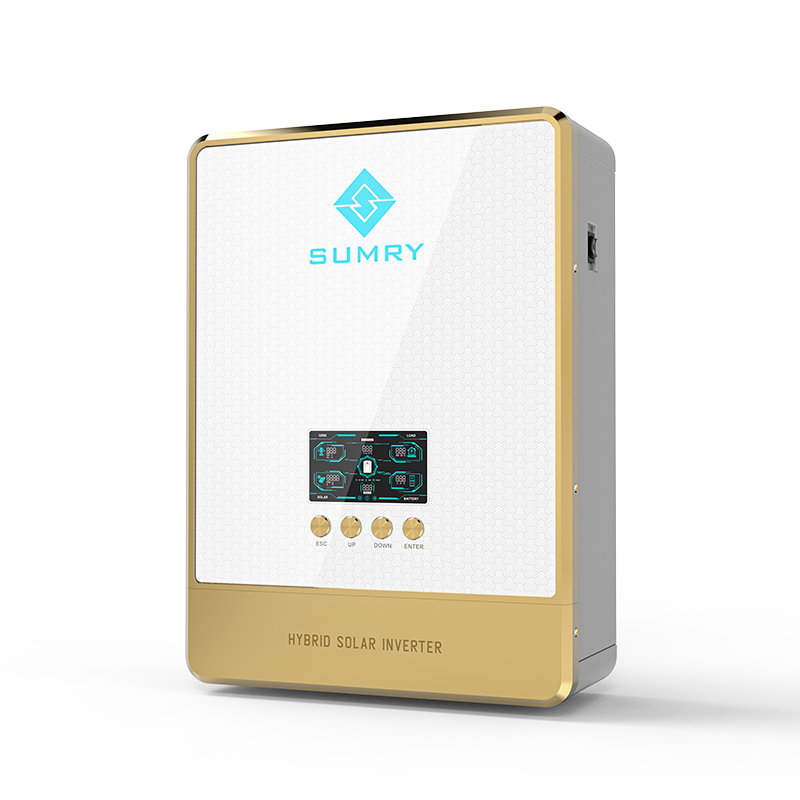

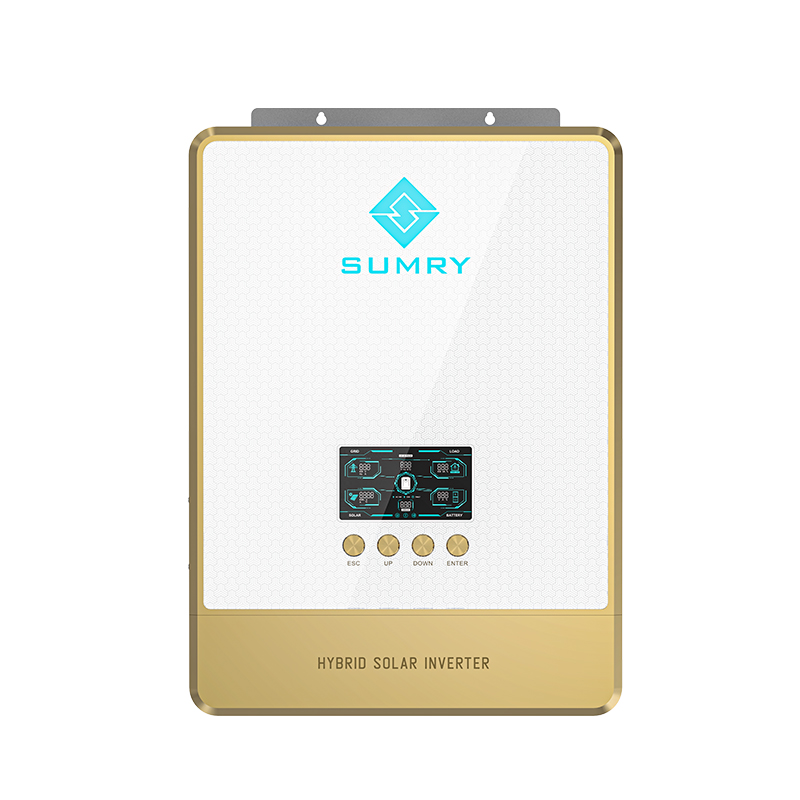

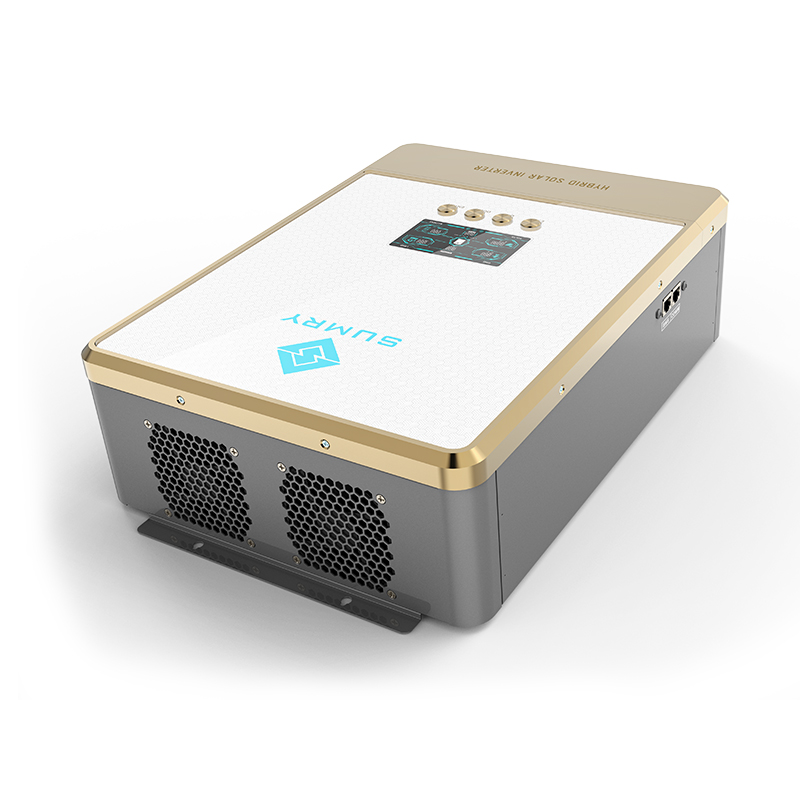

Pure sine Wave solar inverter
Big LCD Screen with richer content
Two communication Ports for BMS and WiFi
Dual AC output available for 4.2KVA and 7KVA
RGB Lighting for different working mode
Inverter running with or without battery
Built-in Lithium Battery automatic activation
Lithium battery intelligent charge control system : adjust the inverter charging current according to the battery information.
Internal clock function for showing PV power generation and setting AC charging time and running loads time by user
Offline software upgrade function for adding new functions and fixing software errors
Wide PV input voltage range 55-450VDC
Built in 80A and 110A MPPT solar charger
WIFI available for IOS and Android
MODEL | RS-2200 | RS-3200 | RS-4200 | RS-4200 | RS-7000 |
Rated Power | 2200VA/1800W | 3200VA/3000W | 4200VA/3800W | 4200VA/3800W | 7000VA/6200W |
INPUT | |||||
Voltage | 230VAC | ||||
Selectable Voltage Range | 170-280VAC(for personal computers) | ||||
Frequency Range | 50Hz/60Hz (Auto sensing) | ||||
OUTPUT | |||||
AC Voltage Regulation (Batt.Mode) | 230VAC±5% | ||||
Surge power | 4400VA | 6400VA | 8400VA | 8400VA | 14000VA |
Transfer Time | 10ms (for personal computers) | ||||
Wave form | Pure Sine Wave | ||||
TWO LOAD OUTPUT POWER | |||||
Full Load | 1800W | 3000W | 3800W | 3800W | 6200W |
Maximum Main Load | - | - | 3800W | 3800W | 6200W |
Maximum EPS Load (battery mode) | - | - | 1200W | 1200W | 2000W |
Main Load Cut Off Voltage | - | - | 22V | 44V | 44V |
Main Load Return Voltage | - | - | 27V | 54V | 54V |
BATTERY & AC CHARGER | |||||
Battery Voltage | 12VDC | 24VDC | 24VDC | 48VDC | 48VDC |
Floating Charge Voltage | 13.5VDC | 27VDC | 27VDC | 54VDC | 54VDC |
Overcharge Protection | 15.5VDC | 31VDC | 31VDC | 61VDC | 61VDC |
Maximum charge current | 60A | 80A | 60A | 80A | |
SOLAR CHARGER | |||||
MAX.PV Array Power | 2000W | 3000W | 6000W | ||
MPPT Range@ Operating Voltage | 55-450VDC | ||||
Maximum PV Array Open Circuit Voltage | 450VDC | ||||
Maximum Charging Current | 80A | 110A | 80A | 110A | |
Maximum Efficiency | 98% | ||||
PHYSICAL | |||||
Dimension.D*W*H(mm) | 405*286*98mm | 423*300*120mm | 423*300*120mm | ||
Net Weight (kgs) | 5kg | 5.5kg | 6.8kg | 6.9kg | 8.0kg |
Communication Interface | Two communication ports,One RS485 port for BMS, | ||||
OPERATING ENVIRONMENT | |||||
Humidity | 5% to 95% Relative Humidity(No-condensing) | ||||
Operating Temperature | -10℃ to 55℃ | ||||
Storage Temperature | -15℃ to 60℃ | ||||
